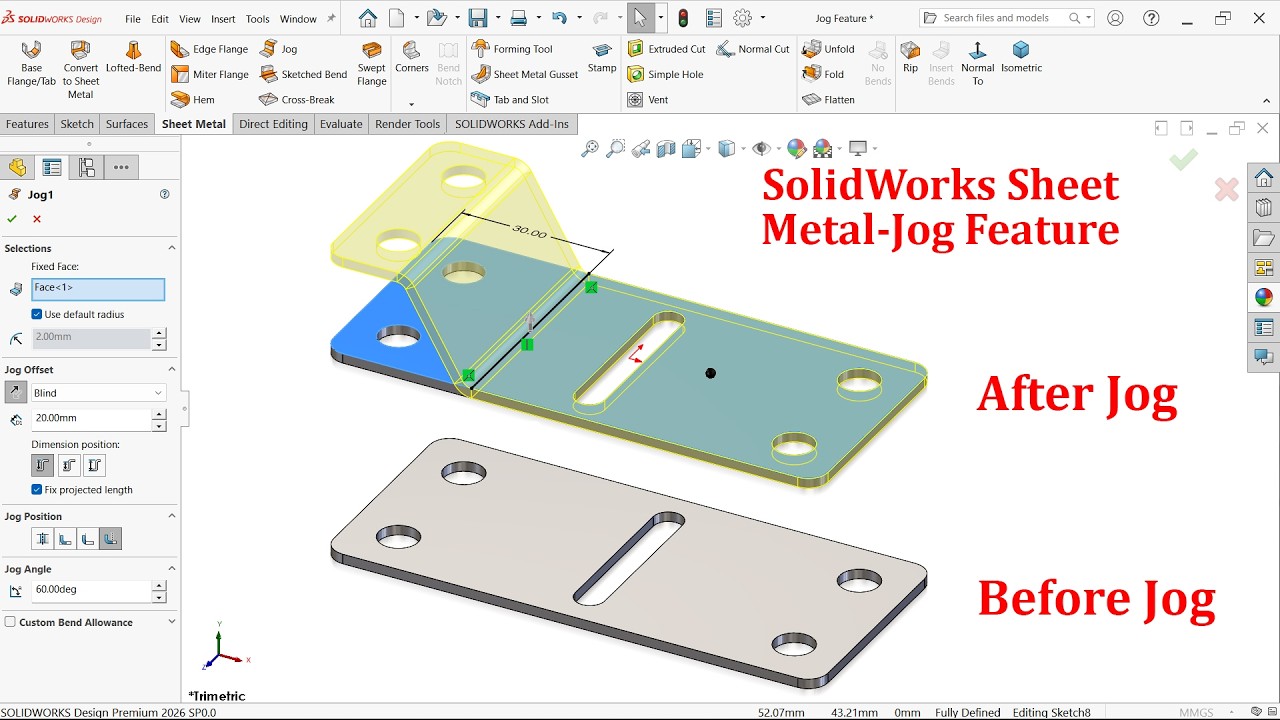

Tutorial Jog Feature Sheet Metal In Solidworks Grabcad Tutorials Tutorial jog feature (sheet metal) in solidworks? here is the tutorial. start solidworks in part mode. top plane>>sketch. draw a rectangle. keep the default settings and click ok. under sheet metal tab click jog. select the top face of the base flange. create a line at 60º angle. exit the sketch. now the jog property manager will show. In this complete tutorial, we explore the jog feature in solidworks sheet metal step by step. the jog feature is used to create an offset bend in a sheet metal part, which helps.
Tutorial Jog Feature Sheet Metal In Solidworks Grabcad Tutorials It provides step by step instructions on utilizing various sheet metal tools, including base flange, edge flange, and jog features. the tutorial concludes with instructions on unfolding the part to view the initial sheet metal design. Sketch a line on the face of a sheet metal part where you want to create the jog. alternatively, you can select the jog feature before you create a sketch (but after you select a plane). 📝 steps to use the jog tool in solidworks start with a sheet metal part you must already have a sheet metal feature like a base flange. select a face or sketch a line you can start the jog tool by selecting a face and then sketching a line where you want the jog. The jog feature in solidworks is used to add two (2) bends to a sheet metal part with a single line sketch. it is straightforward to create jog bends in solidworks sheet metal.
Tutorial Jog Feature Sheet Metal In Solidworks Grabcad Tutorials 📝 steps to use the jog tool in solidworks start with a sheet metal part you must already have a sheet metal feature like a base flange. select a face or sketch a line you can start the jog tool by selecting a face and then sketching a line where you want the jog. The jog feature in solidworks is used to add two (2) bends to a sheet metal part with a single line sketch. it is straightforward to create jog bends in solidworks sheet metal. This video explains what a jog is and how it is used, and goes into common errors. The notes and questions for 157 solidworks sheet metal tutorial: jog; placing jog bending line; avoid jog intersection have been prepared according to the software development exam syllabus. See how you can take full advantage of sheet metal features on the part, assembly and drawing levels. as a bonus, get an introduction to the costing functionality which will help you assess sheet metal and other production costs. Whether you're a professional metal fabricator or just a weekend warrior, you can create an exact closed corner on a sheet metal with these easy steps.
Tutorial Jog Feature Sheet Metal In Solidworks Grabcad Tutorials This video explains what a jog is and how it is used, and goes into common errors. The notes and questions for 157 solidworks sheet metal tutorial: jog; placing jog bending line; avoid jog intersection have been prepared according to the software development exam syllabus. See how you can take full advantage of sheet metal features on the part, assembly and drawing levels. as a bonus, get an introduction to the costing functionality which will help you assess sheet metal and other production costs. Whether you're a professional metal fabricator or just a weekend warrior, you can create an exact closed corner on a sheet metal with these easy steps.
