Sinusoidal Source Advanced Circuit Analysis Lecture Slides Docsity There are two primary sinusoidal sources: wall outlets and oscillators. oscillators are typically crystals that electrically vibrate and are found in devices that communicate or display video such as tv's, computers, cell phones, radios. Sinusoidal waveforms are produced by electromagnetic induction when a coil of wire rotates at a constant speed within a uniform magnetic field. however, the reverse is also true.

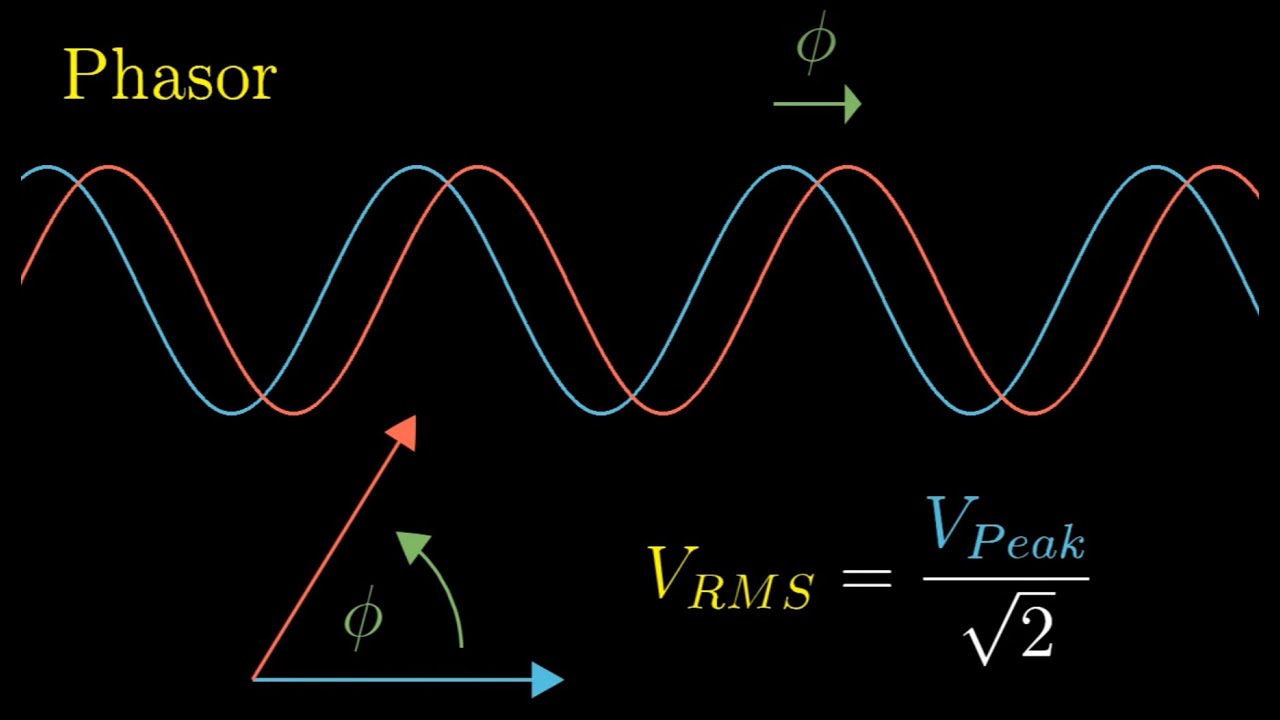

Sinusoidal Source Electrical Ciruits Ac Notes Pdf Mechanics A sinusoidal current source (dependent or independent) produces a current that varies with time. the sinusoidal varying function can be expressed either with the sine function or cosine function. A sinusoidal source in electrical engineering generates an alternating current (ac) with a sinusoidal waveform. this equation representing a sinusoidal voltage is given by:. Sinusoidal sources and phasors are the foundation of ac circuit analysis. instead of solving differential equations every time you encounter a time varying signal, phasors let you convert sinusoidal voltages and currents into complex numbers. This document discusses sinusoidal sources and phasors. it defines a sinusoidal source as a voltage or current that varies sinusoidally with time according to common sinusoidal equations.
Circuit With Sinusoidal Voltage Source Transient Analysis Sinusoidal sources and phasors are the foundation of ac circuit analysis. instead of solving differential equations every time you encounter a time varying signal, phasors let you convert sinusoidal voltages and currents into complex numbers. This document discusses sinusoidal sources and phasors. it defines a sinusoidal source as a voltage or current that varies sinusoidally with time according to common sinusoidal equations. When the input to the circuit is sinusoidal, the phasors and impedances can be used to represent the circuit in the frequency domain. in the frequency domain, the circuit is represented by algebraic equations. Learn about sinusoidal sources, rms values, and their application in circuit theory. includes formulas and practical examples. (1) generation, transmission, consumption of electric energy occur under sinusoidal conditions. (2) it can be used to predict the behaviors of circuits with non sinusoidal sources. The characteristics of an ac waveform is that of a mathematical sinusoid (sine wave), which alternates symmetrically high and low representing either a power source or a signal source.
Solved The Source In The Circuit Shown Is A Sinusoidal Chegg When the input to the circuit is sinusoidal, the phasors and impedances can be used to represent the circuit in the frequency domain. in the frequency domain, the circuit is represented by algebraic equations. Learn about sinusoidal sources, rms values, and their application in circuit theory. includes formulas and practical examples. (1) generation, transmission, consumption of electric energy occur under sinusoidal conditions. (2) it can be used to predict the behaviors of circuits with non sinusoidal sources. The characteristics of an ac waveform is that of a mathematical sinusoid (sine wave), which alternates symmetrically high and low representing either a power source or a signal source.
Solved A Figure Below Shows A Sinusoidal Voltage Source In Chegg (1) generation, transmission, consumption of electric energy occur under sinusoidal conditions. (2) it can be used to predict the behaviors of circuits with non sinusoidal sources. The characteristics of an ac waveform is that of a mathematical sinusoid (sine wave), which alternates symmetrically high and low representing either a power source or a signal source.

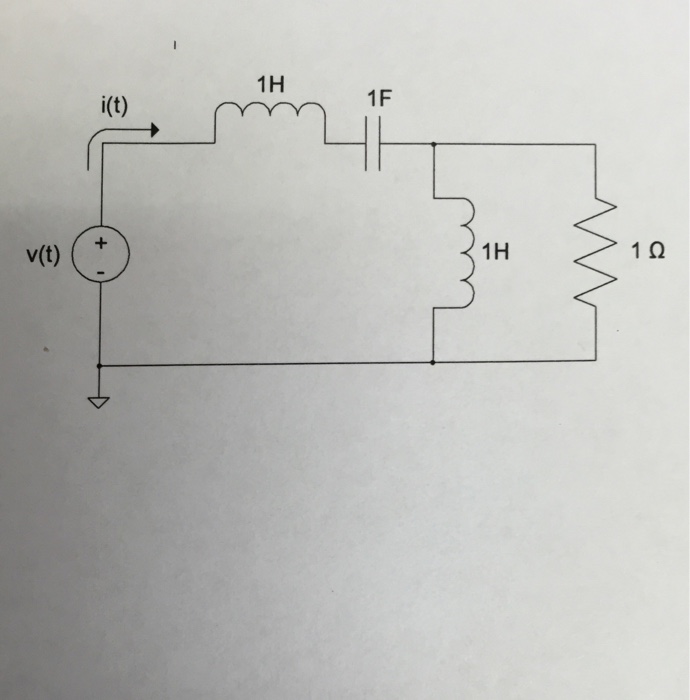

Solved A Sinusoidal Voltage Source Is Applied To The Circuit Chegg
