Can Message Frames After setting up your first can network, the next step is understanding what the messages on the bus actually contain. every communication on the controller area network (can) takes place in the form of a structured message called a frame. A can network can be configured to work with two different message (or frame) formats: the standard or base frame format (described in can 2.0 a and can 2.0 b), and the extended frame format (described only by can 2.0 b).

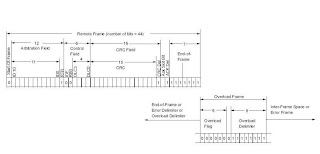

Can Bus Message Frames Overload Frame Interframe Space Each can message frame, regardless of the message id length, will be terminated by a sequence of 11 recessive bits: the ack delimiter bit in the acknowledgement field (1 bit), the end of frame field (7 bits), and the intermission field (3 bits). Simply put, the error frame is a special message that violates the framing rules of a can message. it is transmitted when a node detects a fault and will cause all other nodes to detect a fault β so they will send error frames, too. The four different message types, or frames (see figure 2 and figure 3), that can be transmitted on a can bus are the data frame, the remote frame, the error frame, and the overload frame. This article introduces the controller area network (can) serial communication bus, detailing message frames, bus arbitration, and signaling.
Can Bus Message Frames Error Frame Communication And Protocal Data The four different message types, or frames (see figure 2 and figure 3), that can be transmitted on a can bus are the data frame, the remote frame, the error frame, and the overload frame. This article introduces the controller area network (can) serial communication bus, detailing message frames, bus arbitration, and signaling. In this tutorial we explain the controller area network (can bus) for beginners, incl. the can frame, higher layer protocols and how to log decode can bus data. The iso11898 1 describes the different can message frames in detail. figure 38 6 through figure 38 10 explain and summarize the construction of the messages and fields. A can frame may contain 50 114 bits which includes data bits like message id, the real payload (0 8 bytes), and some crc bytes. after the hardware captures the can frame, it stores it into a simpler frame that contains frame information, message id, and the data bytes. The four main types of can message formats β data frame, remote frame, error frame, and overload frame β are decisive for the functionality and reliability of can networks.
Can Bus Message Frames Remote Frame Communication And Protocal Data In this tutorial we explain the controller area network (can bus) for beginners, incl. the can frame, higher layer protocols and how to log decode can bus data. The iso11898 1 describes the different can message frames in detail. figure 38 6 through figure 38 10 explain and summarize the construction of the messages and fields. A can frame may contain 50 114 bits which includes data bits like message id, the real payload (0 8 bytes), and some crc bytes. after the hardware captures the can frame, it stores it into a simpler frame that contains frame information, message id, and the data bytes. The four main types of can message formats β data frame, remote frame, error frame, and overload frame β are decisive for the functionality and reliability of can networks.
