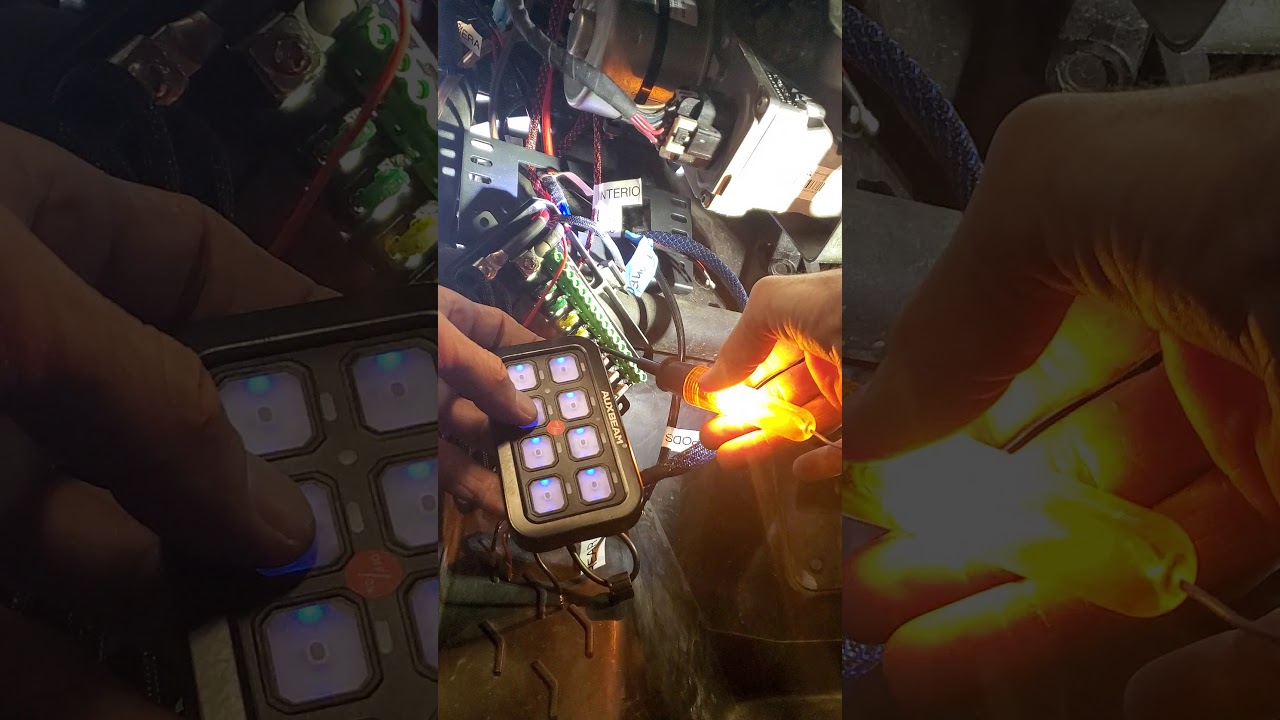

Auxbeam 8 Gang Switch Panel Tacoma World Auxbeam 8 gang switch panel with issues. having a problem with 2 circuits that do not turn off at all. always on no matter if the switches are activated o. My auxbeam switch stopped working recently, and i’m having some difficulty with troubleshooting. below is a picture of the switch and information on voltage readings taken with my multimeter.
Auxbeam 8 Gang Switch Panel The illumination wire is wired into the cab. i tapped into #28 for the panel wire power (small red wire). its the "cluster, overhead, electrical" slot. there's 2 cig 12v sockets on the dash. the lower one is always on. you might have tapped into that circuit thinking it was the upper socket. try #28 and see if that works for you. Comprehensive user manual for the auxbeam 8 gang switch panel ba80, detailing setup, operation, maintenance, troubleshooting, and specifications for this universal circuit control relay system. I connected the green wire (white light) to auxbeam switch 1 (30a) and the white wire to auxbeam switch 2 (30a) and was working, then i noticed that the amber light (white wire above) stopped working. It looks like your auxbeam is rated for 60 amps, and your fuses are way over that combined. obviously each fuse won't draw max amperage, but do you know your amp draw at 12v for each accessory light on there?.
Auxbeam 8 Gang Switch Panel Colorado Canyon Enthusiasts I connected the green wire (white light) to auxbeam switch 1 (30a) and the white wire to auxbeam switch 2 (30a) and was working, then i noticed that the amber light (white wire above) stopped working. It looks like your auxbeam is rated for 60 amps, and your fuses are way over that combined. obviously each fuse won't draw max amperage, but do you know your amp draw at 12v for each accessory light on there?. I tried several other ignition source fuses, but the same thing happened. the switch panel would work (backlighting works), but the accessory that was sharing the fuse would not work. there are no blown popped fuse. i also tried several different amperage fuses. I installed an auxbeam ra80 in my 4runner this weekend, and as a complete novice in automotive wiring, i couldn’t find a comprehensive guide on this install that answered all my questions. By following these troubleshooting steps and tips, you should be able to diagnose and resolve most common issues with the auxbeam 8 gang switch panel. remember to always prioritize safety and consult with a professional if you're unsure about any aspect of the repair process. The kit comes with everything you’ll need to install the switch panel. you’ll only need extra harnesses once you install your acc lighting if it doesn’t come with any wiring harness.
Auxbeam 8 Gang Switch Panel Tacoma World I tried several other ignition source fuses, but the same thing happened. the switch panel would work (backlighting works), but the accessory that was sharing the fuse would not work. there are no blown popped fuse. i also tried several different amperage fuses. I installed an auxbeam ra80 in my 4runner this weekend, and as a complete novice in automotive wiring, i couldn’t find a comprehensive guide on this install that answered all my questions. By following these troubleshooting steps and tips, you should be able to diagnose and resolve most common issues with the auxbeam 8 gang switch panel. remember to always prioritize safety and consult with a professional if you're unsure about any aspect of the repair process. The kit comes with everything you’ll need to install the switch panel. you’ll only need extra harnesses once you install your acc lighting if it doesn’t come with any wiring harness.
Auxbeam 8 Gang Switch Panel Colorado Canyon Enthusiasts By following these troubleshooting steps and tips, you should be able to diagnose and resolve most common issues with the auxbeam 8 gang switch panel. remember to always prioritize safety and consult with a professional if you're unsure about any aspect of the repair process. The kit comes with everything you’ll need to install the switch panel. you’ll only need extra harnesses once you install your acc lighting if it doesn’t come with any wiring harness.
