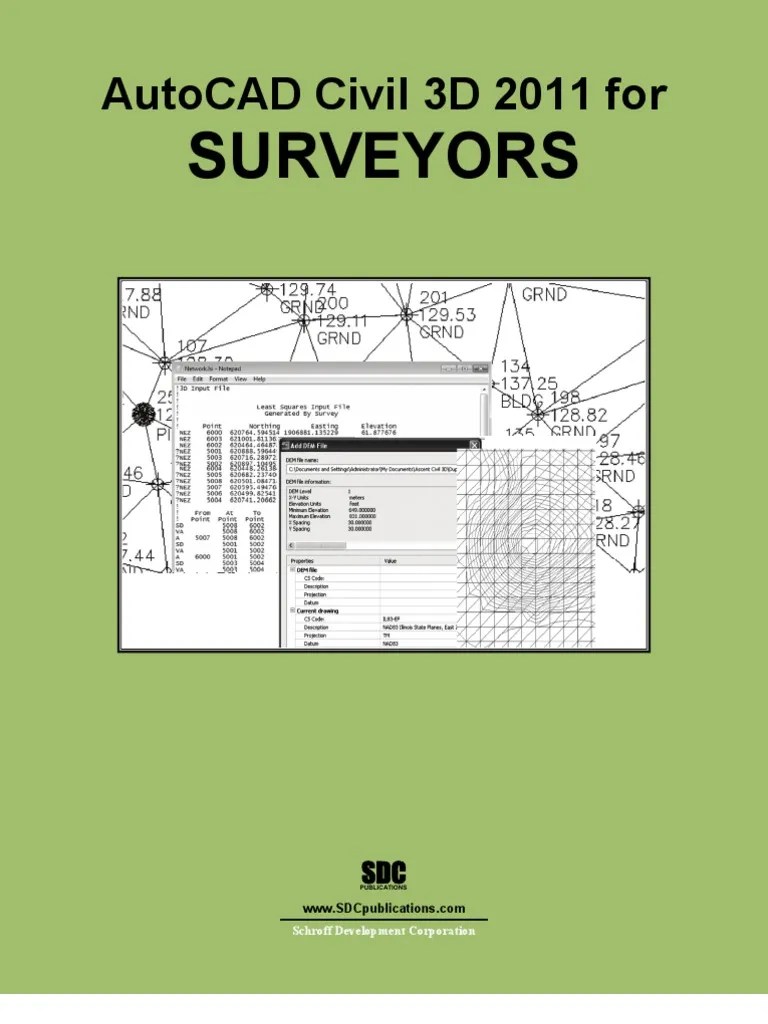

Civil 3d For Survey | PDF | Surveying | Auto Cad

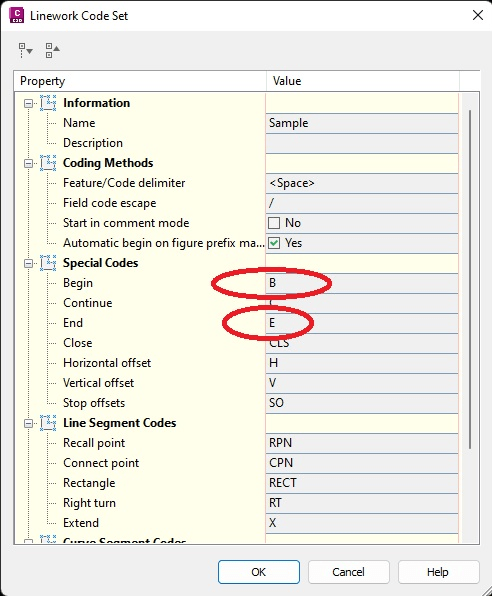

Civil 3d For Survey | PDF | Surveying | Auto Cad Business center heavy civil edition offers features not available in civil 3d, such as the ability to set up polygon figures with fill transparency, which is not possible in civil 3d where. I'm trying to build a new feature library for generating linework. i have all my linework codes and linework control codes created. when i want to start a line i'll put a b after the code to start the joining sequence and an e to end it.

C3D 2013:Importing Survey Data; Figures-Line Codes In Has ! In Yellow ...

C3D 2013:Importing Survey Data; Figures-Line Codes In Has ! In Yellow ... Most of what the op has set up for tbc could be setup in c3d using the survey database and description keys to get the linework and the layers and blocks import as expected. Our daily survey picks various features, such as trees, lamp posts, signboards, etc. we certainly add details of each feature as attributes to each shot—attributes like tree canopy size, tree type, or lamp post number. When you need to add new codes to be used while doing survey you need to add the same to your settings in civil 3d. they are styles for points and linework (survey figurelines). This guide walks you through setting up linework code sets, a crucial part of translating field data into linework in civil 3d.

Civil 3D Tips And Tricks | PDF | Surveying | Computing

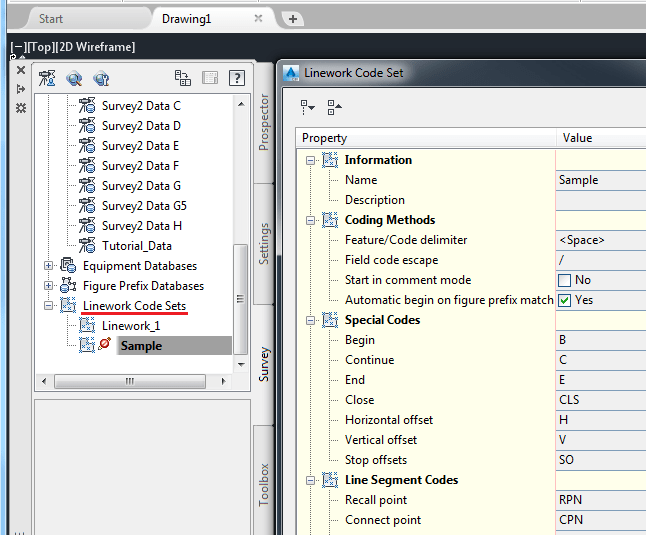

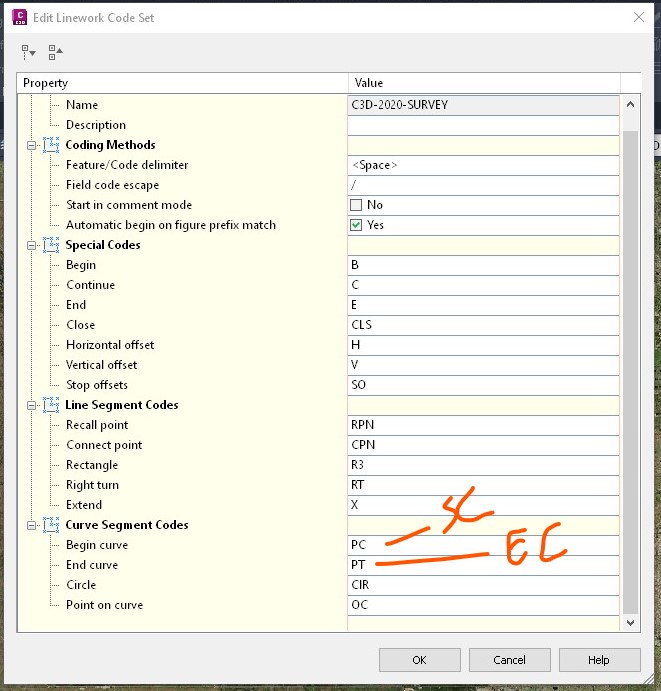

Civil 3D Tips And Tricks | PDF | Surveying | Computing When you need to add new codes to be used while doing survey you need to add the same to your settings in civil 3d. they are styles for points and linework (survey figurelines). This guide walks you through setting up linework code sets, a crucial part of translating field data into linework in civil 3d. Delve into the world of civil 3d as we discuss the elements of the survey tab in the tool space, starting with linework code sets. discover how to set working folders, create and modify equipment and figure prefix databases, and how to generate linework code sets in civil 3d. Exercise 5: setting up a linework code set in this exercise, you will learn how to set up a linework code set to interpret the field codes that the survey field crew enters into a data collector. I have extracted point features from point cloud data collected using a trimble sx10 and would like to bring the points into civil 3d and process the point codes to generate line info on all our set cad standards. Linework code sets are displayed on the toolspacesurvey tab. specify the default linework code set in the survey user settings. an import event stores the linework code set that was last used to process linework for that event.

TBC & Civil3D Help! | Trimble Business Center

TBC & Civil3D Help! | Trimble Business Center Delve into the world of civil 3d as we discuss the elements of the survey tab in the tool space, starting with linework code sets. discover how to set working folders, create and modify equipment and figure prefix databases, and how to generate linework code sets in civil 3d. Exercise 5: setting up a linework code set in this exercise, you will learn how to set up a linework code set to interpret the field codes that the survey field crew enters into a data collector. I have extracted point features from point cloud data collected using a trimble sx10 and would like to bring the points into civil 3d and process the point codes to generate line info on all our set cad standards. Linework code sets are displayed on the toolspacesurvey tab. specify the default linework code set in the survey user settings. an import event stores the linework code set that was last used to process linework for that event.

Solved: Need Help Setting Up C3D To Use Survey Codes - Autodesk Community

Solved: Need Help Setting Up C3D To Use Survey Codes - Autodesk Community I have extracted point features from point cloud data collected using a trimble sx10 and would like to bring the points into civil 3d and process the point codes to generate line info on all our set cad standards. Linework code sets are displayed on the toolspacesurvey tab. specify the default linework code set in the survey user settings. an import event stores the linework code set that was last used to process linework for that event.

Solved: Import Survey Line Work Into CIVIL 3D - Autodesk Community

Solved: Import Survey Line Work Into CIVIL 3D - Autodesk Community

TBC vs Civil 3D - Survey-Setup Line Codes
